Sarasota Pallet Rack
Drive In Pallet Rack in Sarasota, FL
Drive in pallet rack in Sarasota, FL fits bulk grocery and produce stock with few SKUs and repeated pallet dimensions. We plan drive in warehouse racking around lane quantities, forklift dimensions and the rotation method—not depth alone.
The Palmetto / Port Manatee corridor, Wimauma cooler facilities and Bradenton’s I-75 / US-301 buildings have different height and handling limits. Expensive cooler and freezer space makes deeper storage worth comparing, provided the daily truck movements and stock turns suit the lane arrangement.
Drive in rack versus drive through rack

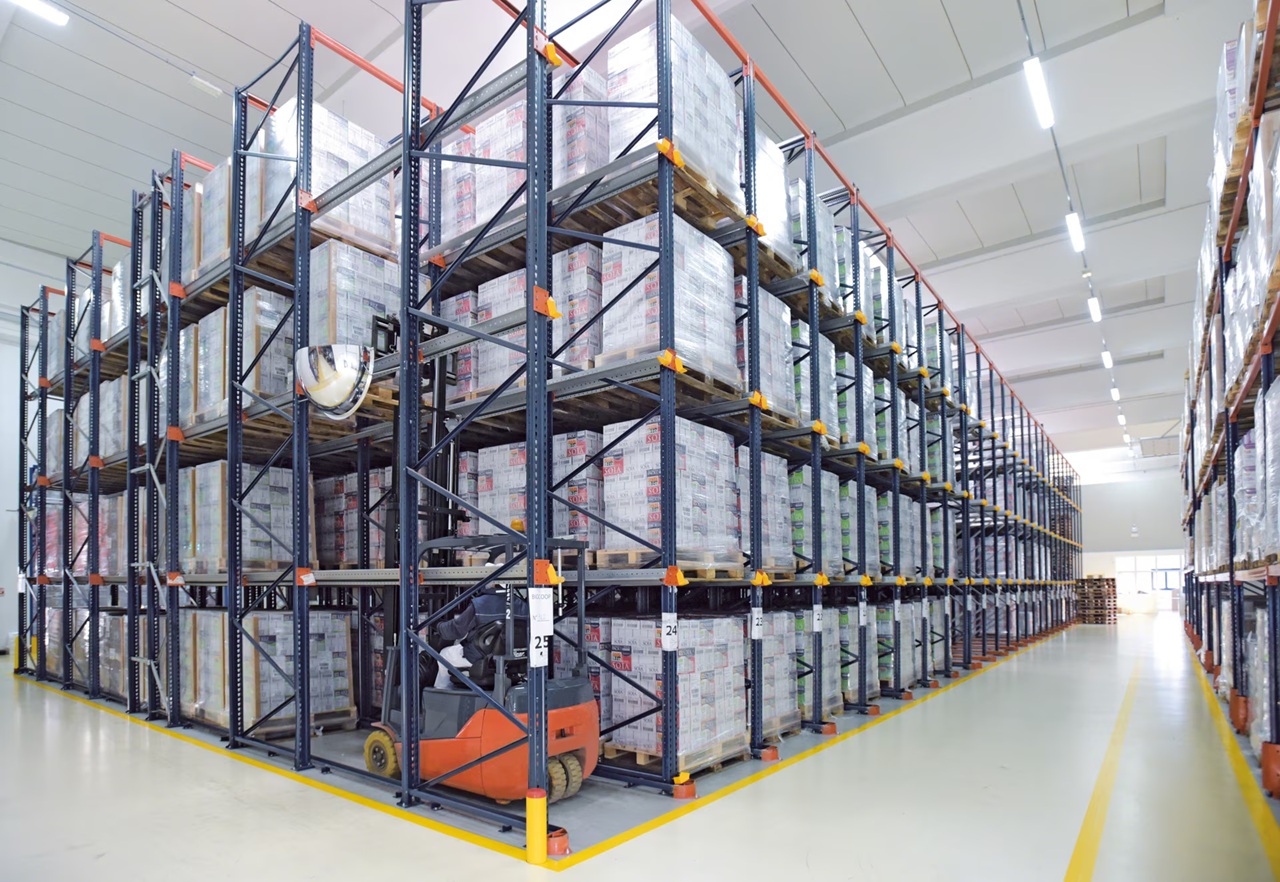

In drive-in storage, the truck enters a lane to place pallets on support rails, loading and retrieving from the same end. That generally suits LIFO bulk stock. Each lane needs a clear SKU assignment so an operator does not have to remove unrelated pallets to find an order.
A drive through arrangement has access at both ends and can support FIFO when the operation follows a consistent loading sequence. It also requires a second working aisle. We compare that space against a pallet flow layout when grocery dates or produce rotation make FIFO the main requirement.
Forklift reach and pallet support
The actual truck dimensions decide whether the operator can enter and work within the lane. Pallet width, load overhang and rail support must be checked together. A nominally standard pallet is not enough information when cartons or wrap extend beyond its edges.
Lane depth, level height and the full load pattern affect the system specification. The supporting frames and rails must suit the heaviest pallets and the chosen level spacing. We keep the capacity arrangement clear on the load plaques and in the quoted layout.
Bulk food storage around Sarasota
Port-related produce may arrive in concentrated batches, while outbound demand breaks those quantities over several turns. Deep lanes should match the regular batch size, not the largest occasional receipt. Space saved in storage is lost if staging pallets block the lane entrances.
Wimauma has cooler and distribution space with 13–18.5 ft clear heights, unlike newer 32 ft clear buildings along the Manatee I-75 / US-301 corridor. Each needs its own number of levels. Discuss protected finishes for humid or wash-down areas when choosing new material.
Plan lanes, quote material, schedule crews
We ask for quantities by SKU, pallet sizes, weights, stock rotation, clear height and the truck model. The free CAD layout shows lane depth and working aisles alongside receiving. Your itemized quote defines the new system, freight and installation scope.
Our installation work uses experienced installation crews we schedule and manage, with phases agreed around your operating areas. Hurricane season can affect receiving access and installation scheduling. Keep a staging plan for post-storm replenishment rather than using rack entry aisles as overflow.
Plan the next part of your warehouse
Plan drive-in rack around the industrial space in Wimauma, FL, Plant City, FL, Palmetto, FL. Compare all six product systems when storage and picking need different arrangements.
Changing buildings? Our warehouse relocation service connects the destination layout with teardown, transport coordination and reinstallation.
Pallet Rack Planning Questions
Plan Your Sarasota Rack Layout
Send pallet sizes, loads and clear height for a free CAD layout and itemized quote.
