Which rack type fits our stock?

Selective teardrop suits mixed SKUs. Pushback stores two to six pallets deep, LIFO by SKU; pallet flow suits FIFO and dated stock. Drive-in fits bulk storage with few SKUs, cantilever handles long loads, and carton flow serves case picking.

What measurements set the rack size?

Start with real pallet dimensions. A standard 48-inch-deep pallet commonly uses a 42-inch-deep upright; 96-inch beams fit two 40-inch pallets, while 108-inch and 144-inch beams suit other arrangements. Height comes from clear height and forklift lift height.

How many pallet positions will the layout hold?

Clear height, aisle width and forklift reach determine the count. Our free CAD layout gives the exact number before you buy, with receiving and shipping areas included.

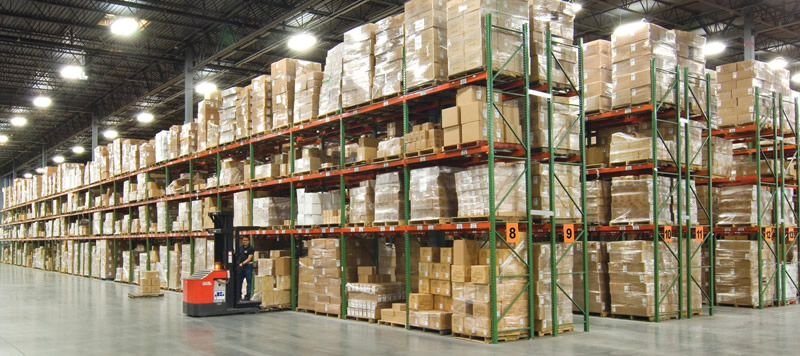

New pallet rack system showing beam levels and working aisles

Sarasota Pallet Rack

Pallet Rack Systems in Sarasota, FL

Name: Sarasota Pallet Rack
Address: 6901 Professional Pky E, Unit B, Sarasota, FL, 34240, US
Telephone: (941) 841-8942

Pallet rack systems in Sarasota, FL cover mixed-SKU distribution, deep-lane reserves, long materials and case picking. Start with stock turns, pallet quantities and forklift access, then choose the system that fits those requirements.

Lakewood Ranch, Palmetto and the Fruitville Road / Cattlemen Road corridor have different building footprints and clear heights. Cooler space is expensive and older infill buildings are land-constrained, so a useful layout may combine direct-access bays with a denser reserve or picking area.

(941) 841-8942

New Pallet Rack Systems

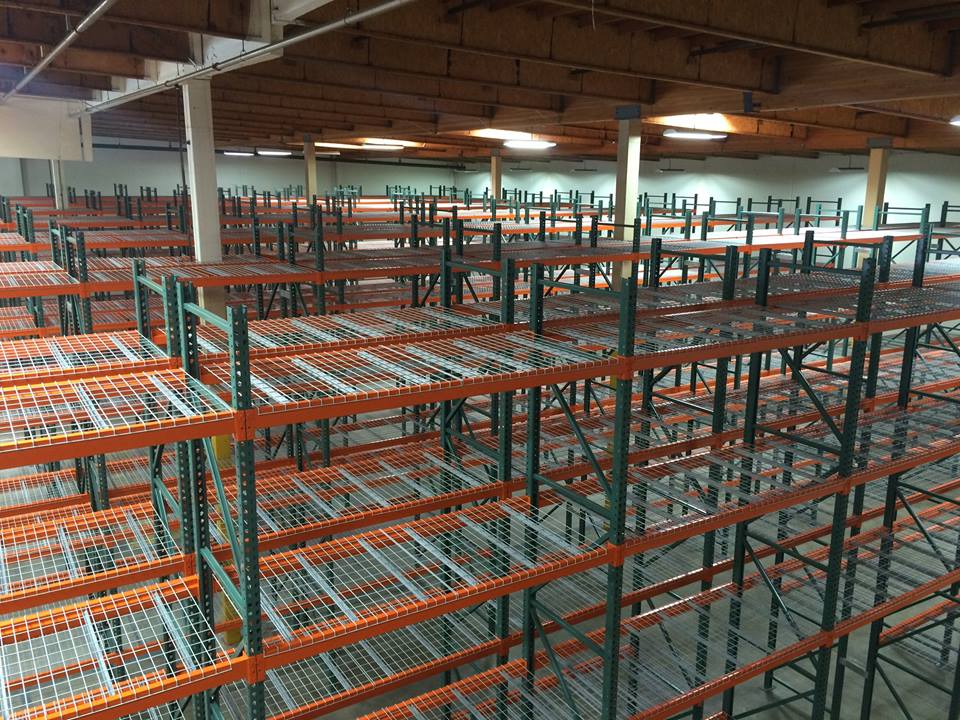

Pallet Rack

Direct access for mixed SKUs, with beam levels sized to actual pallet loads.

View Pallet Rack

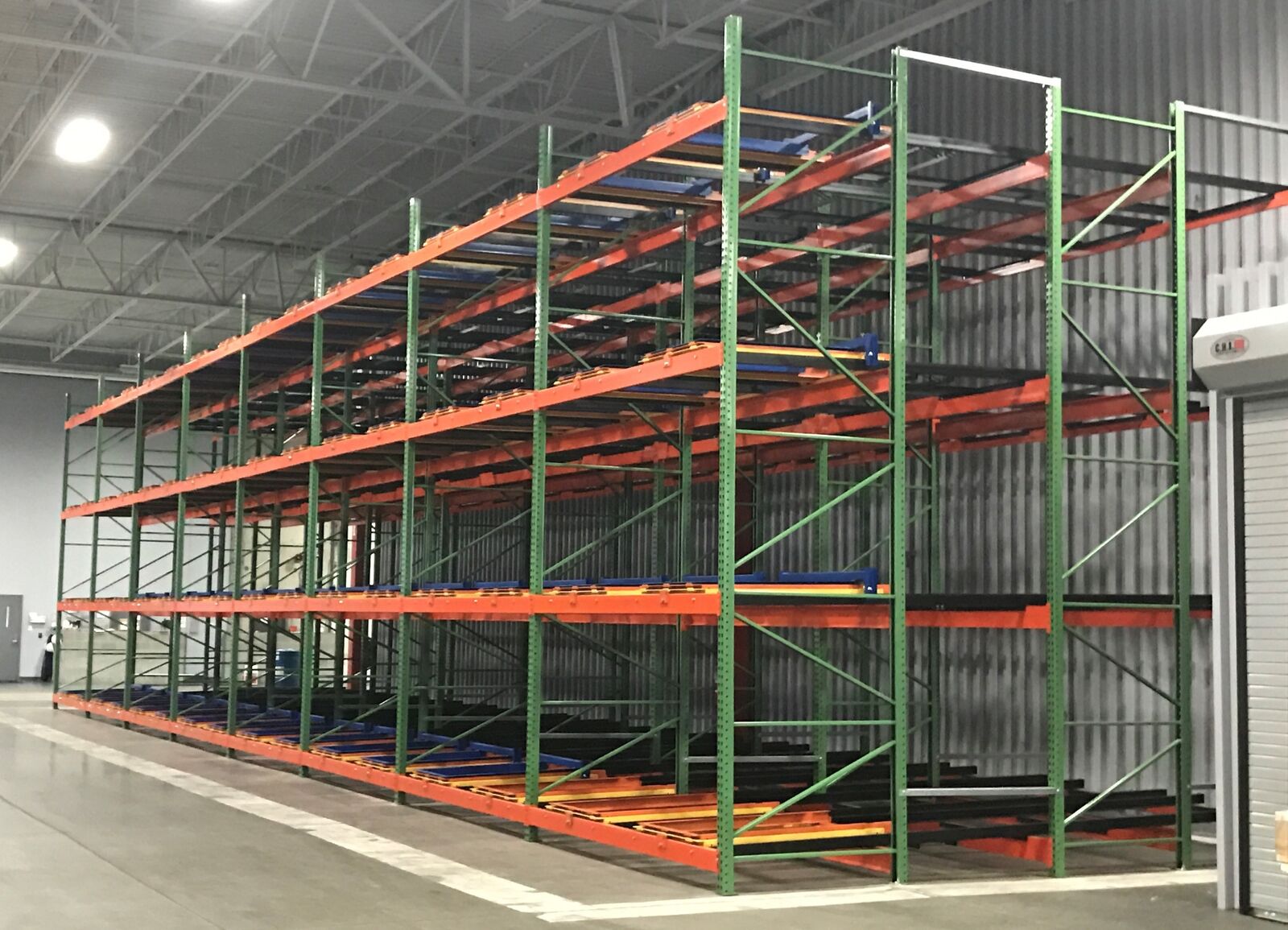

Pushback Rack

Two to six pallets deep for several pallets per SKU and LIFO stock rotation.

View Pushback Rack

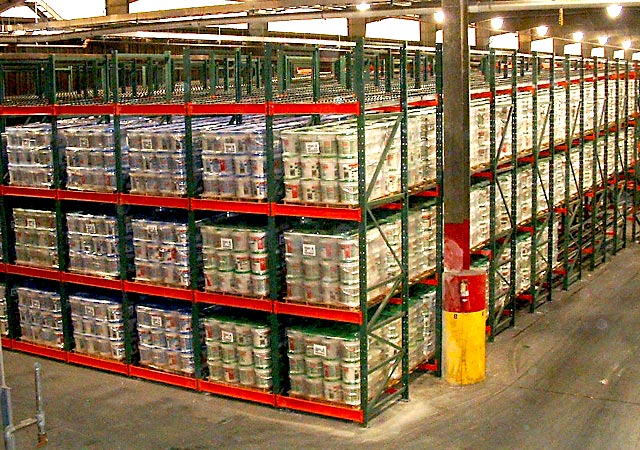

Pallet Flow Rack

Gravity-fed FIFO lanes for grocery, produce and other dated pallet stock.

View Pallet Flow Rack

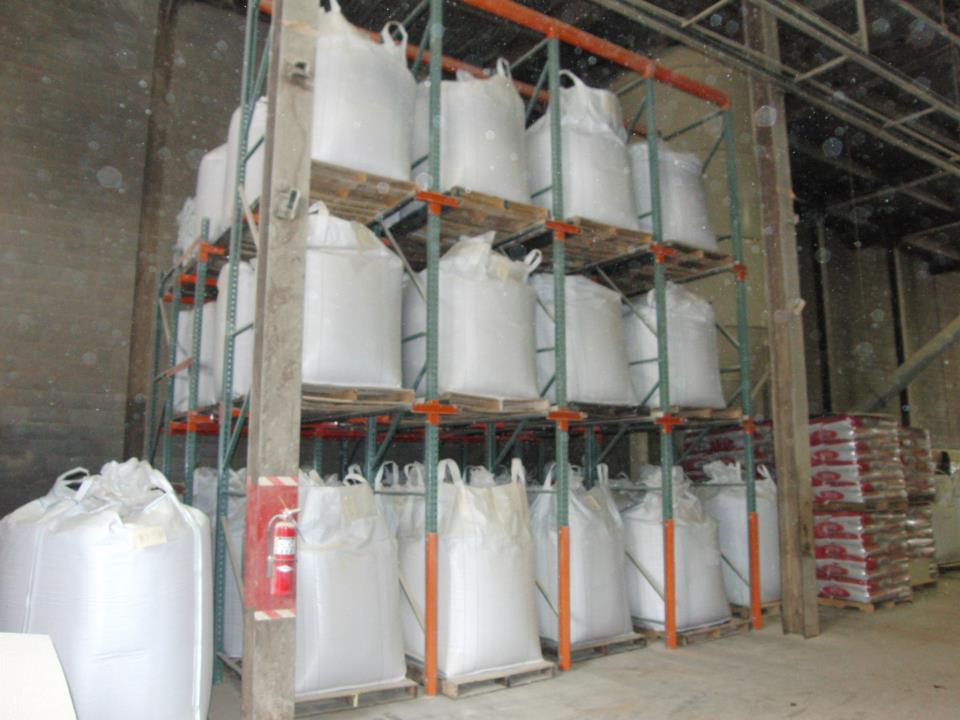

Drive-In Rack

Deep-lane bulk storage for large quantities of a small number of SKUs.

View Drive-In Rack

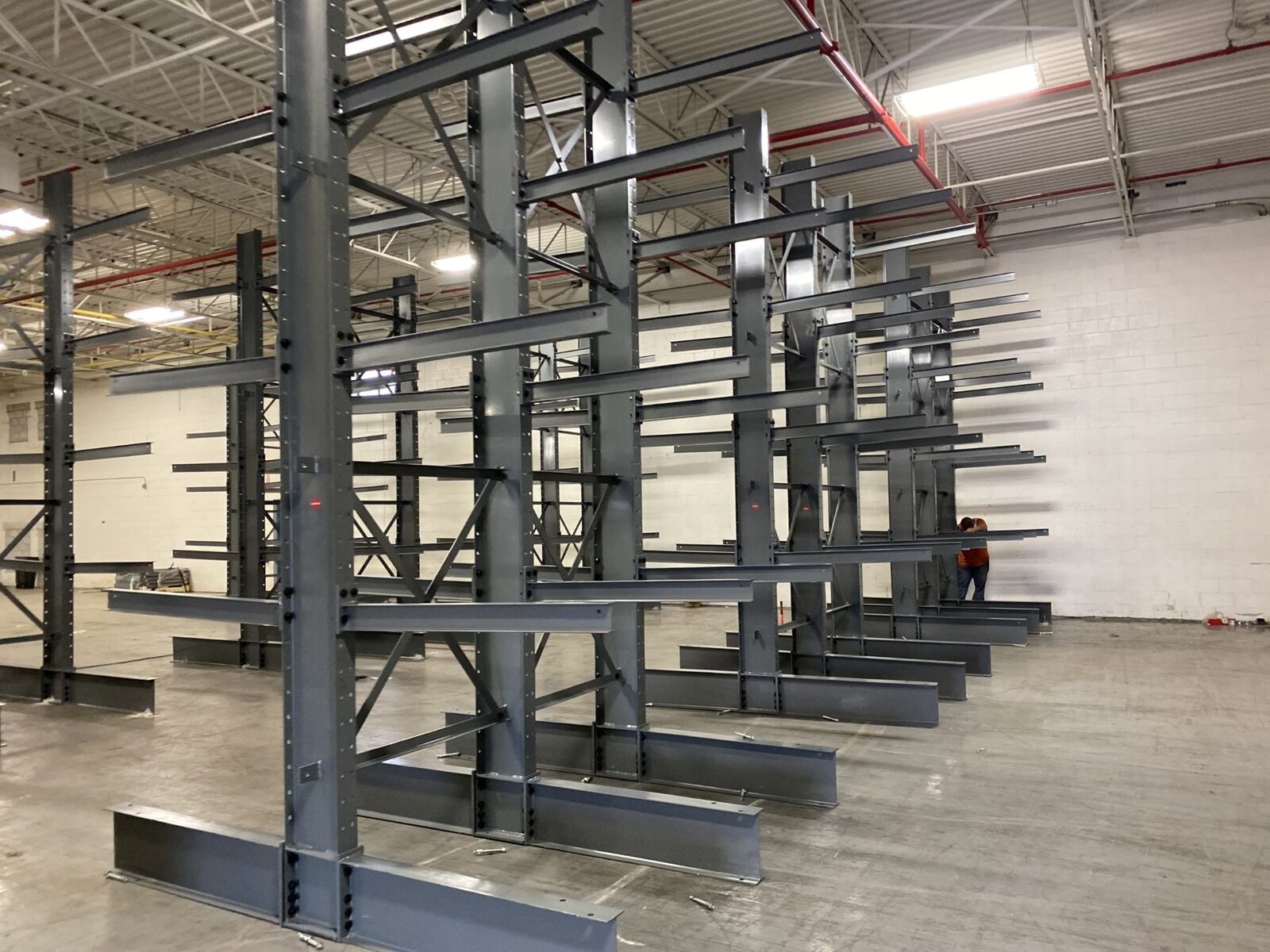

Cantilever Rack

Open-front storage for lumber, pipe, windows, doors and other long loads.

View Cantilever Rack

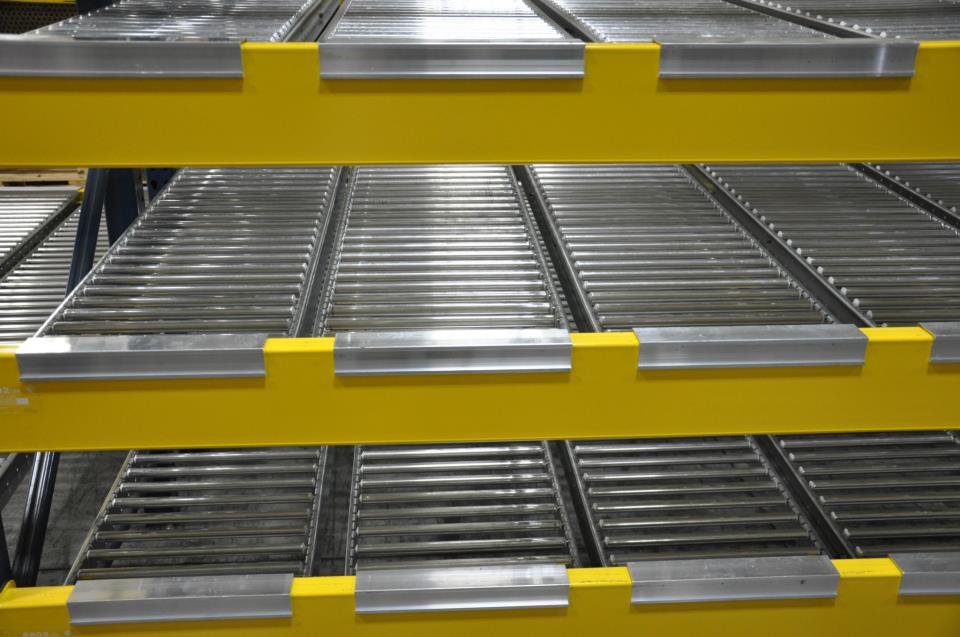

Carton Flow Rack

Front-facing case picking with separate replenishment for e-commerce and parts.

View Carton Flow Rack

Choose warehouse racking by stock movement

Mixed SKUs usually start with selective teardrop. Several pallets per SKU can suit pushback; FIFO food or dated stock points to pallet flow. Drive-in fits bulk quantities with few items. Cantilever carries long bundles, and carton flow serves case picking without tying every pick to a forklift.

The system name alone does not set the layout. Pallet size, heaviest load, clear height and the truck’s turning space determine bay lengths, frame heights and working aisles. We draw receiving and outbound staging alongside the storage rows.

New material, measured levels and managed installation

We size beams by capacity per pair at each level and frames by height and beam spacing. Load plaques show the rated arrangement. For additions, connection photos are essential because teardrop fittings are not universal between manufacturers.

Heat and humidity around the SRQ / Tallevast Road area and salt air near SeaPort Manatee can influence finish selection. Our free CAD layout and itemized quote set the scope, followed by installation using experienced installation crews we schedule and manage.

Plan the next part of your warehouse

Match the system to your building in Palmetto, Ellenton or Lakewood Ranch. Our service-area directory covers all 24 towns.

Changing buildings? Our warehouse relocation service connects the destination layout with teardown, transport coordination and reinstallation.

Pallet Rack Planning Questions

Plan Your Sarasota Rack Layout

Send pallet sizes, loads and clear height for a free CAD layout and itemized quote.
