Cantilever Rack in Sarasota, FL
Cantilever rack in Sarasota, FL gives long building materials a storage face without front uprights between the loads. We specify cantilever warehouse racking from bundle length, load weight, arm spacing and the way your forklift handles the material.
Contractor supplies around Clark Road, building-material users in Palmetto and marine parts operations in Venice need different arm arrangements. Hurricane-supply staging, year-round humidity and salt air make outdoor location and finish selection part of the rack discussion, not an afterthought.

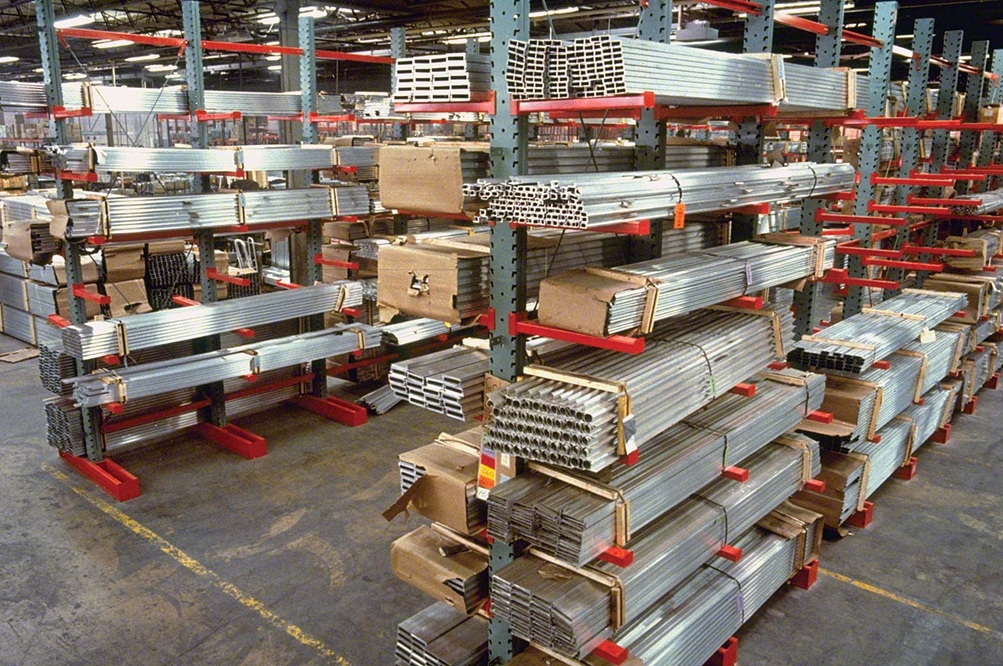

Cantilever rack for lumber, pipe and building supplies
Long bundles need enough supporting arms to control unsupported length. Tell us the shortest and longest loads as well as their weights. Lumber, pipe and windows do not all rest on arms the same way; the support pattern follows the product rather than a standard bay width.
We compare single-sided rows against walls with double-sided rows served from both faces. The bases need room within the layout, and the forklift must turn with the longest load. A short aisle measured with an empty truck does not describe the space needed for a long bundle.
Arm capacity and load height
Arm ratings apply to the specified load and arrangement. Columns, bases, arm lengths and arm spacing are selected as a system, not as interchangeable loose parts. The highest storage level must remain within the truck’s working lift height at the intended load weight.
Include dunnage and anything extending beyond the bundle. Mixed lengths may need separate zones so a short package does not miss its intended support. We show usable storage levels and handling clearances in the CAD layout before material is quoted.
Sarasota indoor and outdoor material storage
Palmetto building-material yards, Venice marine supply work and Clark Road contractor buildings can combine indoor bays with yard storage. Near the water, heat, humidity and salt air make galvanized or protected finishes worth considering for new material.
Hurricane season from June through November affects outdoor cantilever and yard-storage planning. Keep access and restock staging in the operating plan and agree installation scheduling around the site’s work. We do not assume every outdoor area should use the same arrangement as an indoor row.
New cantilever pallet rack and an itemized plan
Send bundle lengths, heaviest weights, current storage quantities, lifting equipment and building or yard dimensions. The free CAD layout sets row orientation, arm levels and working aisles. The itemized quote defines columns, arms, bases and installation for the agreed arrangement.
We coordinate delivery and access with experienced installation crews we schedule and manage. For a move to another building, review long-load routes at the new address before setting rows; doors and turns can change even when the storage quantity stays the same.
Plan the next part of your warehouse
Plan cantilever rack around the industrial space in Venice, FL, Port Charlotte, FL, Englewood, FL. Compare all six product systems when storage and picking need different arrangements.
Changing buildings? Our warehouse relocation service connects the destination layout with teardown, transport coordination and reinstallation.
